A PTZ (Pan-Tilt-Zoom) camera can rotate 360° horizontally, tilt up and down, and zoom in optically — sometimes to 30× or 40× magnification. At first glance, it seems like one PTZ should replace four or five fixed cameras. In practice, this logic breaks down for one fundamental reason: a PTZ can only look in one direction at a time.
This guide from CCTVPROS Kottayam explains every scenario where each camera type excels, and why most professional security installations use both together rather than choosing one over the other.
A fixed CCTV camera (whether dome, bullet, or turret) points in a single direction and records that view continuously, 24 hours a day, 7 days a week. The field of view is determined by the lens and does not change unless the camera is physically repositioned.
Key characteristic: Every second of every day, the camera produces a complete video record of its coverage zone. No moment is missed.

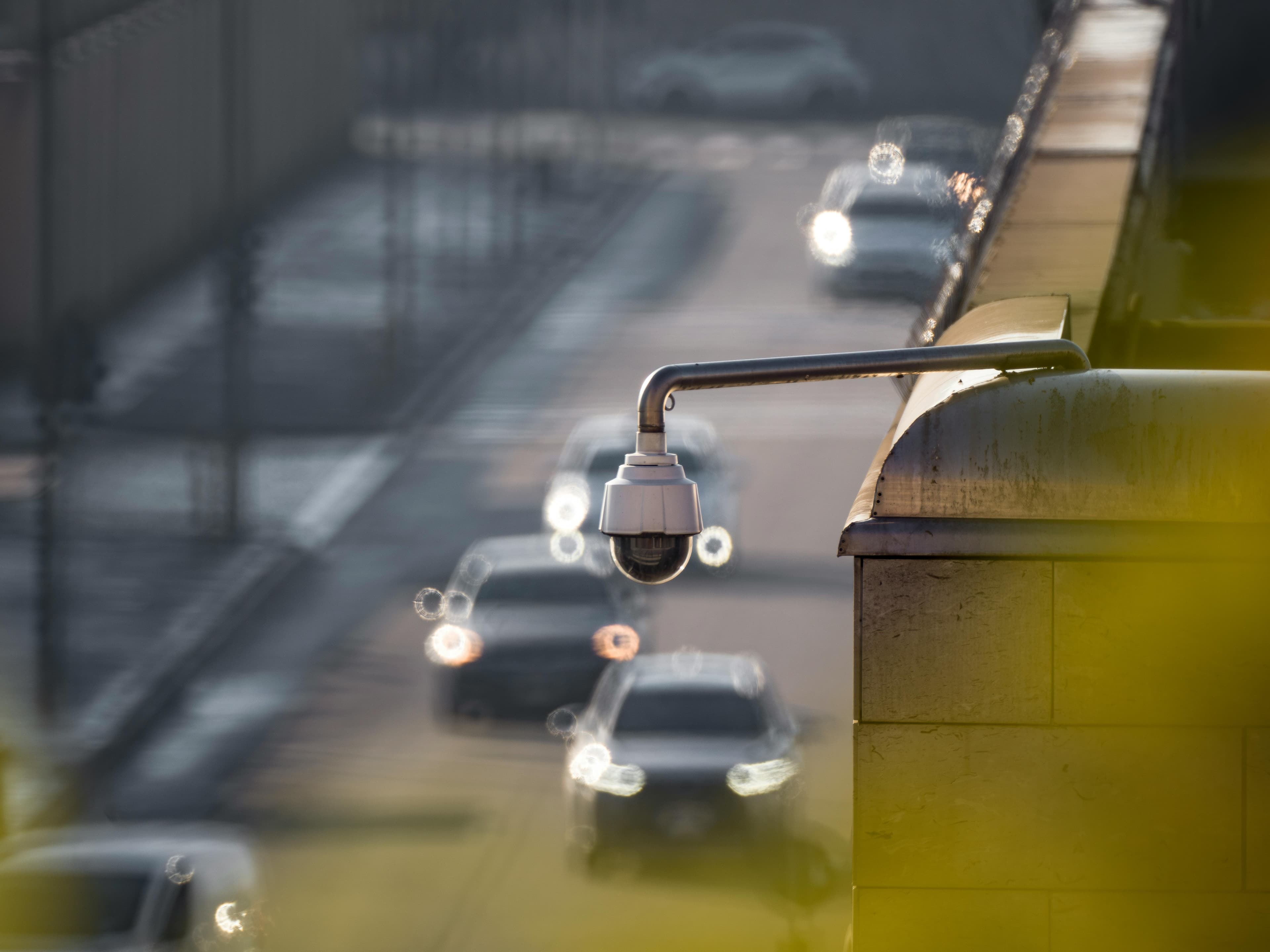

A PTZ camera has motorised pan (horizontal rotation), tilt (vertical pivot), and optical zoom built in. It can be controlled manually (by an operator or via an app) or programmed to follow preset patrol patterns — automatically sweeping between multiple positions on a schedule.
Key characteristic: The camera provides flexible, wide-area coverage but can only record one direction at a time. If the camera is pointing left and an incident happens on the right, that incident is not recorded.
| Feature | Fixed Camera | PTZ Camera |
|---|---|---|
| Coverage area | Fixed field (60–110° typical) | 360° pan, 90° tilt, ×30+ zoom |
| Recording continuity | Complete 24/7 recording of coverage zone | Only records direction camera is pointing |
| Evidence value | High — never misses its zone | Lower — depends on where camera was pointing |
| Operator required? | No | Recommended for full benefit |
| Auto-patrol function | No | Yes — programmable presets |
| Optical zoom | Fixed (digital zoom only, degrades quality) | True optical zoom (×18–×40) |
| Night vision range | 20–80m depending on model | 100–200m on premium models |
| Cost (entry-level) | ₹800–₹3,500 | ₹8,000–₹25,000+ |
| Installation complexity | Simple | More complex (power, data, mount) |
| Maintenance | Low — no moving parts | Higher — motors wear over time |
| Best use case | Entry points, recording, evidence | Wide area monitoring, active tracking |
For any location where you must have recorded evidence — main gate, cash counter, front door, safe room — a fixed camera is mandatory. It records every second without fail. A PTZ at the same location could be pointing the wrong direction during an incident.
If no one is actively monitoring the cameras (which is true for 99% of home and small business installations), a PTZ camera loses most of its advantage. The auto-patrol function sweeps between positions, but it means each position is covered for only 20–30 seconds at a time before the camera rotates away.
For the same budget, fixed cameras provide more total coverage. Four 4MP fixed cameras covering four different zones will always provide more comprehensive security than one PTZ covering the same budget.
Fixed dome cameras can be flush-mounted on ceilings and walls in compact spaces. PTZ cameras require clearance around the housing for the motorised rotation — they can't be mounted too close to walls or ceilings.
If you have a security guard at a monitor — a corporate office, shopping mall, gated community, or industrial facility — a PTZ significantly enhances their ability to respond. The guard can pan to any area, zoom in to read a number plate or identify a face, and follow a suspicious person across the property.
Warehouses, sports grounds, open car parks, factory yards, and large vacant plots are difficult to cover adequately with fixed cameras without installing a very large number of units. A single PTZ with ×30 optical zoom positioned at the centre can provide detailed identification-level coverage of the entire perimeter on demand.
Optical zoom is a major advantage of PTZ. When a suspicious vehicle enters a large compound, a PTZ operator can instantly zoom to read the number plate. A fixed camera would need to be positioned within 5–10 metres of the target to achieve the same detail at equivalent resolution.
Outdoor events, construction site monitoring, and temporary security situations benefit from PTZ because one unit covers large shifting crowds or different areas of a site without permanent installation.
The most effective security systems use fixed cameras for recording and PTZ cameras for active monitoring — not one or the other. A typical layout for a large property might include:
The fixed cameras guarantee evidential footage. The PTZ cameras provide the guard with a powerful tool for real-time monitoring and incident response. Neither replaces the other; they work together.
| Model | Resolution | Zoom | IR Range | Price (Approx.) |
|---|---|---|---|---|
| Hikvision DS-2DE4425IWG-E | 4MP | ×25 optical | 100m | ₹22,000 |
| Dahua SD49425XB-HNR | 4MP | ×25 optical | 100m | ₹20,000 |
| Hikvision DS-2DE2A204IWG-E | 2MP | ×4 optical | 30m | ₹8,500 |
| CP Plus CP-UNP-2425L3-MD | 2MP | ×25 optical | 100m | ₹15,000 |
CCTVPROS designs and installs both fixed and PTZ systems for homes, businesses, and housing societies across Kottayam, Changanacherry, Pala, Ettumanoor, Vaikom, and Kanjirappally. Our engineers will advise on the right camera mix for your specific layout and budget.
Call +91 75999 85666 or WhatsApp wa.me/917599985666.
For monitoring purposes, one PTZ can cover what multiple fixed cameras would. For recording and evidence, no — a PTZ can only record the direction it's pointing at any moment. If an incident happens while the PTZ faces the other way, there is no footage. Fixed cameras always record their zone.
A PTZ camera can only face one direction at a time. In unattended systems with auto-patrol, each position is covered for only 20–30 seconds before the camera moves on. This creates blind spots that fixed cameras do not have.
Choose PTZ when you have an active security guard who can operate it, when you need optical zoom for number plate identification, for very large open areas (warehouse, car park), or for temporary event security. PTZ works best as a complement to fixed cameras, not a replacement.
Entry-level PTZ cameras with ×4 zoom start from around ₹8,500. Professional PTZ with ×25 optical zoom and 100m IR range (Hikvision or Dahua) cost ₹18,000–25,000. This is 5–10× the cost of a comparable fixed camera.
Yes. PTZ cameras can be programmed with up to 255 preset positions and multiple patrol patterns. The camera automatically rotates between positions on a schedule. This is useful as a deterrent but does not guarantee recording of any specific area at any given moment.
Yes. PTZ cameras have motorised pan and tilt mechanisms that wear over time. The motors typically need service or replacement after 3–5 years of continuous operation. Fixed dome and bullet cameras have no moving parts and require minimal maintenance.
The best approach is fixed cameras at all entry points and critical zones (for continuous recording) plus 1–2 PTZ cameras at high vantage points for active monitoring by security staff. This combines the recording reliability of fixed cameras with the patrol and zoom capabilities of PTZ.
Yes. CCTVPROS supplies and installs Hikvision, Dahua, and CP Plus PTZ cameras for commercial, industrial, and housing society installations across Kottayam district. Call +91 75999 85666 for a consultation.
